This thread was automatically split due to performance issues. You can find the rest of the thread here: http://reefcentral.com/forums/showth...0#post15029880

I think we are in need of some FTS's with all the additions!

The SPLIT is mine! lol, congrats on the split!

Quote:

<a href=showthread.php?s=&postid=15029882#post15029882 target=_blank>Originally posted</a> by arctictwist
I think we are in need of some FTS's with all the additions!

FTS - na...nothing much yet as the tank is stil pretty much empty :p

But will try to take some top down shots sometime this week... :D

Quote:

<a href=showthread.php?s=&postid=15029891#post15029891 target=_blank>Originally posted</a> by arctictwist
The SPLIT is mine! lol, congrats on the split!

Thanks for splitting my thread arctictwist

Does that mean I have to do a summary?? :eek1:

:lol:

Shallow Reef Crest Inspired Split Summary

With the split, I guess it’s time to do a summary for those who are lazy to read through all the 40 pages of thread :lol:

System Profile:
• Tank Type: 5-side View SPS Shallow Reef Crest 193-g net volume
• Display Tank Size: L: 176cm x W: 106cm x H: 40cm (15mm 4-side view Low Iron Glass)
• Sump Size: L: 1050cm x W: 720cm x H 45cm – main sump

Equipment Summary:
Filtration:
• ULNS using 100% Zeovit method
• Deltec PF 601S Series Fluidized Calcium Reactor (Rated for normal stocking 2500lts/ heavy stocking 1900lt)
• Deltec – AP 702 skimmer (Rated for normal stocking 2000lts/ heavy stocking 1500lt)
• I~Aquatic’s ZEOvit Reactor: IZ-818 (Up To 4L of ZEOVit)

Lights:
• 2 x Lumen Bright (L) reflectors
• 8 x Tek2 reflectors
• 2 x 400w Galaxy e-ballast
• 2 x 400w Radium bulbs
• 2 x IceCap 660 ballast
• 8 x mixture of 39w ATI and KZ bulbs
• 4 x Local LED for moonlight

Circulation:

A: Close-Loop:

• Sequence Reeflo Pump – Hammerhead (18,000L/h) for CL
• OceansMotions 4 Way (Version 3) for CL

B:Return/ Chiller:

• 1 x Ehiem Compact + 5000 (2,500 to 5,000 L/h) for return

C:Wavemaker Pumps:

• 1 x Turbelle® Stream 6201 (5,000 to 20,000l/h)
• 2 x Turbelle® Gen2 Stream 6105 (3,000L/h to 13,000l/h)

Total Tank turnover estimated at 68 to 78 times l/h including 3 stream, CL and return.

Controller:
• ProfiLux Plus II Professional Ex Plus
• Tunze Multicontroller 7095.000

Cooling/ Heating:
• Hailea/ AquaMedic Model: HL-2000CHB, rated for tanks up to 3000L
• 8 x computer fan (local)

Congrats on the split Ed.

Thank you all for following my build thread so far and stay tune for upcoming episodes of ‘Ed Reef’s Shallow Crest Inspired ART’ ….……..!!

“So in this upcoming episode, what will Ed Reef do about his micro bubbles?? How about the canopy top?? Have he ‘conveniently’ forgotten about it?? How about his island he’s been talking about since PAGE ONE?? And fins….are we going to see fins in his little ocean before it splits again?? How about the ancient fossil?? Is one going to be sacrifice to the montie gods?? Will he ever going to complete his project?”

May the challenge (oooops I mean journey) continues…. :lol:

Wow I just read through this, exhausting...There are some very nice stuff though. Thanks for the read.

Quote:

<a href=showthread.php?s=&postid=15030244#post15030244 target=_blank>Originally posted</a> by elijaher
Congrats on the split Ed.

Thanks elijaher - long summary :lol:

Can't believe so many things have happen since I started the thread :D

Quote:

<a href=showthread.php?s=&postid=15030269#post15030269 target=_blank>Originally posted</a> by Chumba
Wow I just read through this, exhausting...There are some very nice stuff though. Thanks for the read.

Hi Chumba - WELCOME to my build thread!!

More exciting happenings in this coming episode (I hope :rolleye1: )

:lol: :lol: :lol:

Awesome summary Ed! I like the link style appendix and the "upcoming episodes"! lol.

Your summary is a great one.

congrats on the split and nice summary.

btw "Total Tank turnover estimated at 68 to 78 times l/h including 3 stream, CL and return."

wow. that a very high turn over.

Just throwing a random post in here... I find threads by the little black "you posted here before" dot don'tcha know!

Always like following your threads Ed.

Quote:

<a href=showthread.php?s=&postid=15030294#post15030294 target=_blank>Originally posted</a> by arctictwist
Awesome summary Ed! I like the link style appendix and the "upcoming episodes"! lol.

Thanks arctictwist - makes life easier for me too as from experience (my old thread was split a couple of times) people are always asking for some info which is buried somewhere in the thread and I've to do the courtesy to reply back with a link.

This time I just refer them to Page 1

:D

Quote:

<a href=showthread.php?s=&postid=15030373#post15030373 target=_blank>Originally posted</a> by elijaher
Your summary is a great one.

Thanks elijaher - can't take credit for it.

I copied it from another reefer called "NexDog"

Best way to do a summary IMO :lol:

Quote:

<a href=showthread.php?s=&postid=15030504#post15030504 target=_blank>Originally posted</a> by zorden
congrats on the split and nice summary.

btw "Total Tank turnover estimated at 68 to 78 times l/h including 3 stream, CL and return."

wow. that a very high turn over.

Thanks zorden - well if you're intending to keep tables, you will need to crazy random flows...!!

:p

Quote:

<a href=showthread.php?s=&postid=15030519#post15030519 target=_blank>Originally posted</a> by chasekwe
Just throwing a random post in here... I find threads by the little black "you posted here before" dot don'tcha know!

Always like following your threads Ed.

Thanks Nick (eventhou I don't quite catch what you mean??) :p

is the following flow sufficient for my future 4ft x 2.5ft x 2ft tank?

one return Pump: Ocrean Runner 6500, tunze 6045, 6055 & 6100 (2 pcs) controlled by 7095.
well going to hide 1 or maybe 2 in the tunze rocks (just like you)

If the flow is still insufficient. i guess i will have to add in 1 or 2 units of vortech MP40

Quote:

<a href=showthread.php?s=&postid=15030994#post15030994 target=_blank>Originally posted</a> by zorden
is the following flow sufficient for my future 4ft x 2.5ft x 2ft tank?

one return Pump: Ocrean Runner 6500, tunze 6045, 6055 & 6100 (2 pcs) controlled by 7095.
well going to hide 1 or maybe 2 in the tunze rocks (just like you)

If the flow is still insufficient. i guess i will have to add in 1 or 2 units of vortech MP40

Yeah, you have more than enough flow. Only concern is both your 6045 & 6055 is not able to give out random flow, which is equally important.

I would try to sell both your 6045 & 6055 and start off the tank with the 2 x 6100 first. And then in future, once the SPS grows up, you can add 1 MP40w or another Stream, whatever is the latest then :p

The speed of 6055 can be controlled by a singlecontroller or a multicontroller.
srry to hijack your thread. btw your light hood is nice. how i wish i can get those chinese carpenter to do me a cabinet.

Congrats on the thread split Ed, just wanted to say Hi, and am still tagging along ... my new tank arives in 15 days WooHoo! jr

FTS! FTS! FTS!

Congrats on the split dude this tank has turned out very well.

Congrats on the split. That calls for an updated full tank shot.:D

Quote:

<a href=showthread.php?s=&postid=15031230#post15031230 target=_blank>Originally posted</a> by zorden
The speed of 6055 can be controlled by a singlecontroller or a multicontroller.
srry to hijack your thread. btw your light hood is nice. how i wish i can get those chinese carpenter to do me a cabinet.

My bad :o been hanging out with the larger streams for too long now :p

Plenty of good carpenters in Singapore zorden!! Or cross the border where things are half the price and get it done there :D

Quote:

<a href=showthread.php?s=&postid=15032691#post15032691 target=_blank>Originally posted</a> by jrreese
Congrats on the thread split Ed, just wanted to say Hi, and am still tagging along ... my new tank arives in 15 days WooHoo! jr

Can't wait jrreese - don't forget to start a build thread :D

Quote:

<a href=showthread.php?s=&postid=15032829#post15032829 target=_blank>Originally posted</a> by GSMguy
FTS! FTS! FTS!

Congrats on the split dude this tank has turned out very well.

Thanks Nick..... nothing much to show in FTS yet but will take some top down tonight :D

Quote:

<a href=showthread.php?s=&postid=15033036#post15033036 target=_blank>Originally posted</a> by JRaquatics
Congrats on the split. That calls for an updated full tank shot.:D

Will top down do instead?? :D

i think ed's holding out on something! He just doesnt want to do FTS for some reason!

Quote:

<a href=showthread.php?s=&postid=15035769#post15035769 target=_blank>Originally posted</a> by arctictwist
i think ed's holding out on something! He just doesnt want to do FTS for some reason!

Yes, i can sense it. Maybe he don't want me to drool and think of his tank esp when my exam is imminent. :)

A really great distress thread for me. Keep up the good work , ed. Sorry it should be fabulous work.

Yea this thread has provided a bit of stress relief as well as inspiration in my own build...which has slowed to a hault since i went away and came back to work and making up for my vacation!

Arctictwist, his cabinet is well done. really love his cabinet. and i guess after seeing ed's tank, i am confused to go for those dosing (light bailing) of zeovit method.

well as for lights. sorry no mh for me. just ten t5 maybe :)
yes, i guess i will hide my tunzes inside the rock work well i guess my tunzes is not giving my any issue for the past 3 years so is shouldn't for the next 4 years or so :p

His stand is one of THE NICEST ive seen. I simply love it. I cant wait to see what the canopy looks like!! Hey to each his, everyone has their own lighting preferences. as well as everything else for that matter. The beauty of this hobby is there are multiple ways to get the same result....your own artistic creation!

How bout that ATS Ed? :D

Quote:

<a href=showthread.php?s=&postid=15035769#post15035769 target=_blank>Originally posted</a> by arctictwist
i think ed's holding out on something! He just doesnt want to do FTS for some reason!

Man.......didn't stop you from continues posting thou' :D

Quote:

<a href=showthread.php?s=&postid=15036229#post15036229 target=_blank>Originally posted</a> by zorden
Yes, i can sense it. Maybe he don't want me to drool and think of his tank esp when my exam is imminent. :)

A really great distress thread for me. Keep up the good work , ed. Sorry it should be fabulous work.

Now....don't spend too much time in RC - exams are up around the corner :D

Quote:

<a href=showthread.php?s=&postid=15036353#post15036353 target=_blank>Originally posted</a> by arctictwist
Yea this thread has provided a bit of stress relief as well as inspiration in my own build...which has slowed to a hault since i went away and came back to work and making up for my vacation!

You need to progress faster.... :p

Quote:

<a href=showthread.php?s=&postid=15036464#post15036464 target=_blank>Originally posted</a> by zorden
i am confused to go for those dosing (light bailing) of zeovit method.

Why confuse?? You can still do balling lite with zeovit?? What am i missing here??

Quote:

<a href=showthread.php?s=&postid=15036464#post15036464 target=_blank>Originally posted</a> by zorden
well as for lights. sorry no mh for me. just ten t5 maybe :)

T5 works great too.... I love T5 and would have used T5 if not for my silly idea of an island on top of the overflow :p

Quote:

<a href=showthread.php?s=&postid=15036511#post15036511 target=_blank>Originally posted</a> by arctictwist
I cant wait to see what the canopy looks like!! Hey to each his, everyone has their own lighting preferences. as well as everything else for that matter. The beauty of this hobby is there are multiple ways to get the same result....your own artistic creation!

So true...well said!!

Btw, arn't you supposed to be working on your tank now??

Quote:

<a href=showthread.php?s=&postid=15036527#post15036527 target=_blank>Originally posted</a> by Ian
How bout that ATS Ed? :D

What's 'ATS' stand for Ian :confused:

OK, last night I clean and calibrate all the probes and reinstalled.

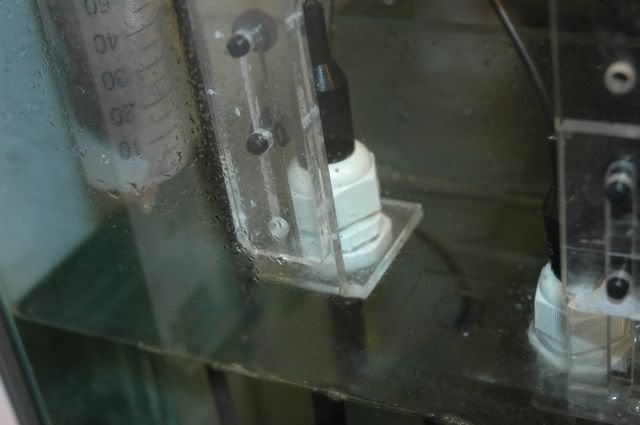

PH Probe 1 – inside sump:
http://i260.photobucket.com/albums/i...uxProbes02.jpg

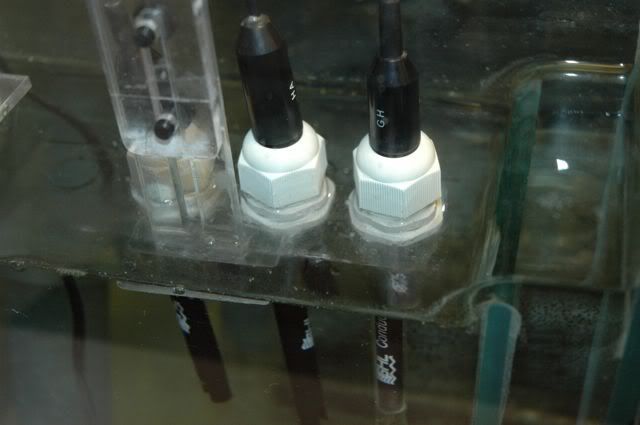

Redox,Conductivity and Temperature Probe:
http://i260.photobucket.com/albums/i...uxProbes01.jpg

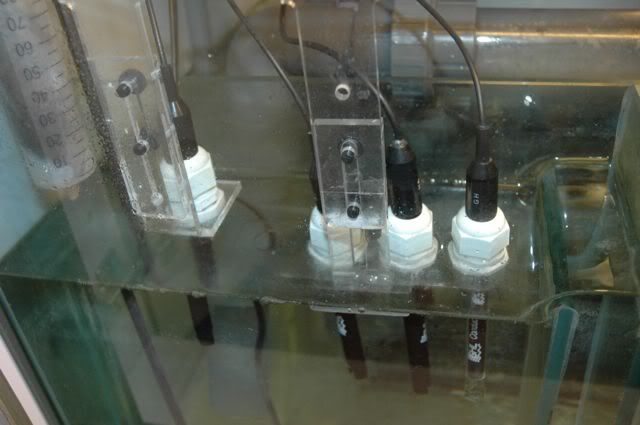

The Family:
http://i260.photobucket.com/albums/i...uxProbes03.jpg

Mmmmm my conductivity show 99.9??? and my Ph shows 10.9 or something like that?? I think something wrong with my Conductivity and Ph probes?? Maybe need replacement probes?? Also somehow my controller doesn’t seem to recognize I have a second probe in my Ca Rx??

Will try to soak it in RO/DI water for 24 hours and recalibrate again to see if it works?? Anyone Profilux users out there with some suggestions??

Temperature and Redox probe is working as normal so that’s good news!!

Meanwhile, for those interested, I order those probe holders from SoCal……. Guess you can easily DYI those probe holders but I’m getting lazy as there is just so much more to do and the prices for those holders are quite reasonable IMO

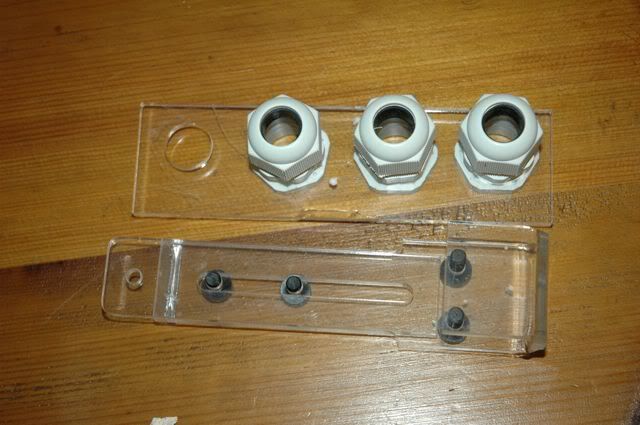

3 Probe holder:
http://i260.photobucket.com/albums/i...beHolder02.jpg

Single Probe holder:
http://i260.photobucket.com/albums/i...beHolder01.jpg

My 3 pieces probe holder unfortunately arrived in 2 pieces but Tom – SoCal was great as usual and send me a replacement immediately!!

:rollface:

Quote:

<a href=showthread.php?s=&postid=15036681#post15036681 target=_blank>Originally posted</a> by Ian
Ariel Tank Shot :D

:lol: :lol: :lol: I LIKE IT!!

MORE WORK ON CABINET DOORS...

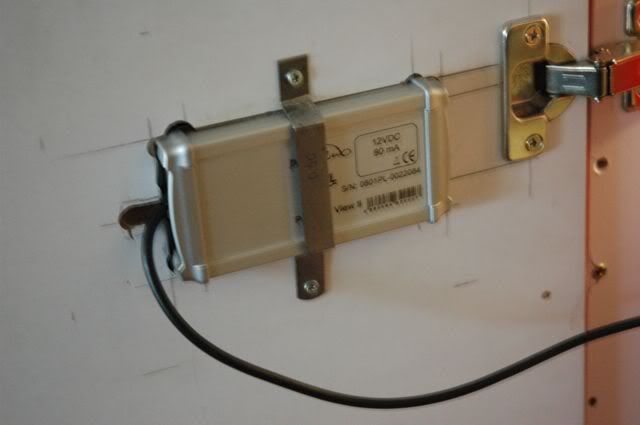

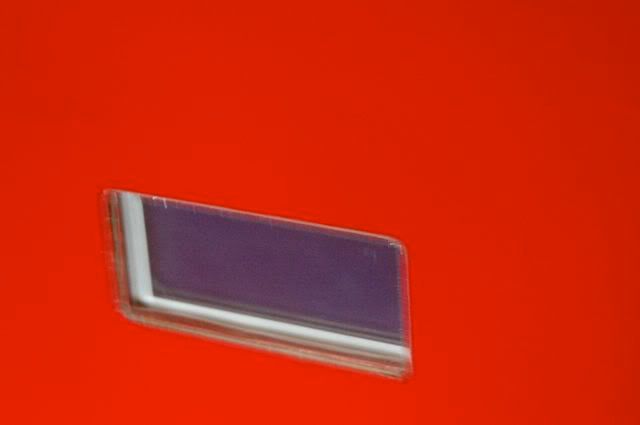

I also made a frame for my opening to install my GHL Profilux View II to the front door of my cabinet.

http://i260.photobucket.com/albums/i...uxViewII01.jpg
http://i260.photobucket.com/albums/i...uxViewII02.jpg

:D

Quote:

<a href=showthread.php?s=&postid=15036671#post15036671 target=_blank>Originally posted</a> by Ed Reef
So true...well said!!

Btw, arn't you supposed to be working on your tank now??

haha. i would be, if i didnt have to work! I do however plan as much as i can while im here. I think i can get a jump on things after bed today. Hopefully!

how bout a link for those probe holders???? i like!

Quote:

<a href=showthread.php?s=&postid=15036730#post15036730 target=_blank>Originally posted</a> by arctictwist
haha. i would be, if i didnt have to work! I do however plan as much as i can while im here. I think i can get a jump on things after bed today. Hopefully!

That explains the FREE TIME you have :D

Quote:

<a href=showthread.php?s=&postid=15036748#post15036748 target=_blank>Originally posted</a> by arctictwist
how bout a link for those probe holders???? i like!

YGPM

:p
